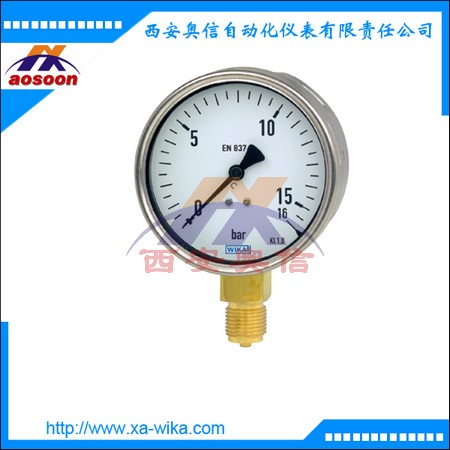

德国wika压力表212.20.100德国威卡工业压力表

应用
坚固耐用的工业级压力表，设计符合EN 837-1、BS 1780和ASME B 40.1标准对于操作安全性的要求
适用于机械和设备制造工业以及家用科技的可靠压力表
适用于非高粘度或不易结晶，不会侵蚀铜合金部件的气体和液体介质
在制冷技术应用中久经考验
功能特性
使用寿命长，坚固耐用
性价比高且可靠
可结合威卡（WIKA）隔膜密封件
德国劳氏和高斯特认证
量程：0 … 100 MPa
详细参数
Bourdon Tube, Pressure Gauges Industry Series
Model: 212.20
Specifications according to data sheet: PM 02.01
Measuring system: copper alloy
Case: stainless steel
Bezel ring: cam ring (bayonet type), stainless steel
Measuring system: copper alloy
Nominal size: 100 mm
Unit of outer Scale: MPa
Measuring range: gauge pressure range
Scale range: 0...0.2 MPa
Process connection: G 1/4 B
Connector location: lower mount
Window: flat instrument glass
Pointer: standard pointer
Accuracy class: class 1.0
Overpressure safe: standard
Case type: without blow-out disc on top
Ingress protection: IP 54
Permissible ambient temperature: -40 … +60 °C
Movement: Copper alloy
Packaging: single packing
Pressure Gauge Standard: International (standard Europe)
Manufacturer logo: *WIKA*
